Product Detail
产品介绍

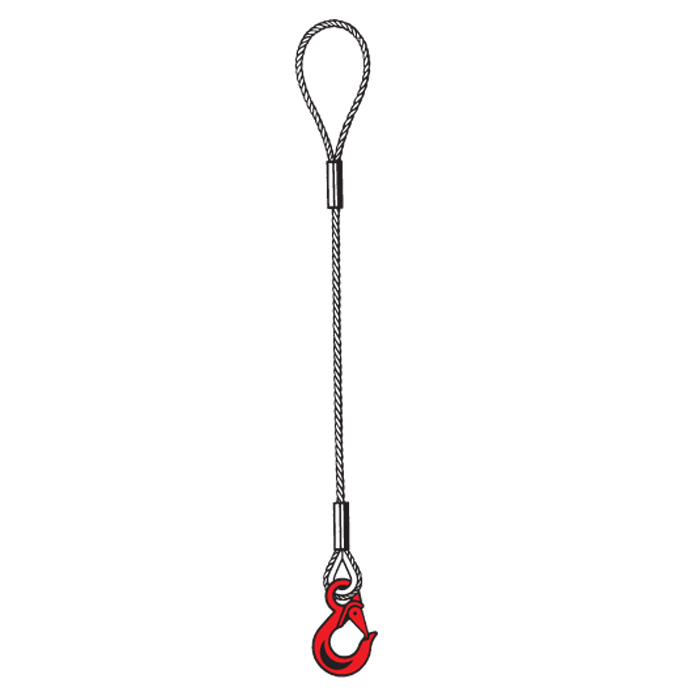

吊索 单腿 软眼 - 眼型吊钩属于该系列吊索，适用于工业吊装、设备搬运、安装定位和现场起重作业。产品可按载荷、尺寸、连接方式和使用环境进行选型。
该页面保留型号、货号和关键技术参数，方便采购、工程师和现场负责人快速核对。用于人员安全、重载或特殊环境时，应结合现场规范复核安全系数和适配部件。
本系列共整理 38 条规格记录，价格和购物车信息已删除，仅保留选型所需字段。
规格型号
| 型号 | 货号 | 允许载荷 | 公称直径 | 有效长度 |
|---|---|---|---|---|
| 吊索 700kg 2m Ø8mm 1ST | 25102000015496 | 700.00 kg | 8 mm | 2 m |
| 吊索 700kg 3m Ø8mm 1ST | 25102000015497 | 700.00 kg | 8 mm | 3 m |
| 吊索 700kg 4m Ø8mm 1ST | 25102000015498 | 700.00 kg | 8 mm | 4 m |
| 吊索 700kg 5m Ø8mm 1ST | 25102000015499 | 700.00 kg | 8 mm | 5 m |
| 吊索 700kg 1m Ø8mm 1ST | 25102000015495 | 700.00 kg | 8 mm | 1 m |
| 吊索 1.000kg 4m Ø10mm 1ST | 25102000015504 | 1000.00 kg | 10.00 mm | 4 m |
| 吊索 1.000kg 5m Ø10mm 1ST | 25102000015505 | 1000.00 kg | 10.00 mm | 5 m |
| 吊索 1.000kg 3m Ø10mm 1ST | 25102000015503 | 1000.00 kg | 10.00 mm | 3 m |
| 吊索 1.000kg 2m Ø10mm 1ST | 25102000015502 | 1000.00 kg | 10.00 mm | 2 m |
| 吊索 1.000kg 1m Ø10mm 1ST | 25102000015501 | 1000.00 kg | 10.00 mm | 1 m |
| 吊索 1.500kg 1m Ø12mm 1ST | 25102000015507 | 1500.00 kg | 12.00 mm | 1 m |
| 吊索 1.500kg 2m Ø12mm 1ST | 25102000015508 | 1500.00 kg | 12.00 mm | 2 m |
| 吊索 1.500kg 3m Ø12mm 1ST | 25102000015509 | 1500.00 kg | 12.00 mm | 3 m |
| 吊索 1.500kg 4m Ø12mm 1ST | 25102000015510 | 1500.00 kg | 12.00 mm | 4 m |
| 吊索 1.500kg 5m Ø12mm 1ST | 25102000015511 | 1500.00 kg | 12.00 mm | 5 m |
| 吊索 2.000kg 5m Ø14mm 1ST | 25102000015517 | 2000.00 kg | 14.00 mm | 5 m |
| 吊索 2.000kg 4m Ø14mm 1ST | 25102000015516 | 2000.00 kg | 14.00 mm | 4 m |
| 吊索 2.000kg 2m Ø14mm 1ST | 25102000015514 | 2000.00 kg | 14.00 mm | 2 m |
| 吊索 2.000kg 1m Ø14mm 1ST | 25102000015513 | 2000.00 kg | 14.00 mm | 1 m |
| 吊索 2.000kg 3m Ø14mm 1ST | 25102000015515 | 2000.00 kg | 14.00 mm | 3 m |
| 吊索 2.700kg 1m Ø16mm 1ST | 25102000015519 | 2700.00 kg | 16.00 mm | 1 m |
| 吊索 2.700kg 2m Ø16mm 1ST | 25102000015520 | 2700.00 kg | 16.00 mm | 2 m |
| 吊索 2.700kg 3m Ø16mm 1ST | 25102000015521 | 2700.00 kg | 16.00 mm | 3 m |
| 吊索 2.700kg 4m Ø16mm 1ST | 25102000015522 | 2700.00 kg | 16.00 mm | 4 m |
| 吊索 2.700kg 5m Ø16mm 1ST | 25102000015523 | 2700.00 kg | 16.00 mm | 5 m |
| 吊索 3.150kg 3m Ø18mm 1ST | 25102000015527 | 3150.00 kg | 18.00 mm | 3 m |
| 吊索 3.150kg 5m Ø18mm 1ST | 25102000015529 | 3150.00 kg | 18.00 mm | 5 m |
| 吊索 3.150kg 4m Ø18mm 1ST | 25102000015528 | 3150.00 kg | 18.00 mm | 4 m |
| 吊索 3.150kg 2m Ø18mm 1ST | 25102000015526 | 3150.00 kg | 18.00 mm | 2 m |
| 吊索 3.150kg 1m Ø18mm 1ST | 25102000015525 | 3150.00 kg | 18.00 mm | 1 m |
| 吊索 4.000kg 2m Ø20mm 1ST | 25102000015532 | 4000.00 kg | 20.00 mm | 2 m |
| 吊索 4.000kg 3m Ø20mm 1ST | 25102000015533 | 4000.00 kg | 20.00 mm | 3 m |
| 吊索 4.000kg 4m Ø20mm 1ST | 25102000015534 | 4000.00 kg | 20.00 mm | 4 m |
| 吊索 4.000kg 5m Ø20mm 1ST | 25102000015535 | 4000.00 kg | 20.00 mm | 5 m |
| 吊索 5.000kg 2m Ø22mm 1ST | 25102000015538 | 5000.00 kg | 22.00 mm | 2 m |
| 吊索 5.000kg 3m Ø22mm 1ST | 25102000015539 | 5000.00 kg | 22.00 mm | 3 m |
| 吊索 5.000kg 4m Ø22mm 1ST | 25102000015540 | 5000.00 kg | 22.00 mm | 4 m |
| 吊索 5.000kg 5m Ø22mm 1ST | 25102000015541 | 5000.00 kg | 22.00 mm | 5 m |
产品特点
- 适用于吊装、搬运、连接、安装定位等工业现场。
- 可按载荷、尺寸、端部连接形式和使用环境进行选型。
- 保留原始型号和货号，便于与采购清单、样册和工程图纸核对。
