Product Detail
产品介绍

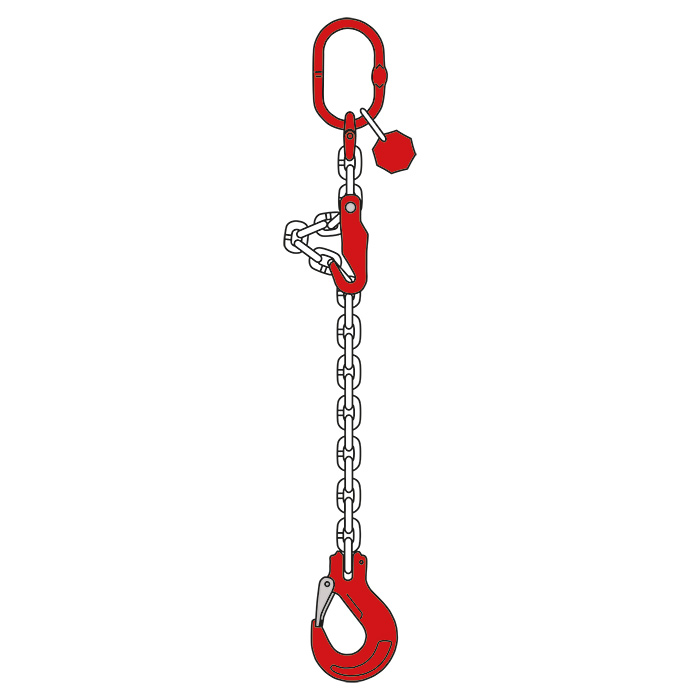

吊链 Carl 钢 单腿 带缩短爪属于G80 系列链条索具，适用于工业吊装、设备搬运、安装定位和现场起重作业。产品可按载荷、尺寸、连接方式和使用环境进行选型。
该页面保留型号、货号和关键技术参数，方便采购、工程师和现场负责人快速核对。用于人员安全、重载或特殊环境时，应结合现场规范复核安全系数和适配部件。
本系列共整理 35 条规格记录，价格和购物车信息已删除，仅保留选型所需字段。
规格型号
| 型号 | 货号 | 允许载荷 | 链环直径 | 有效长度 |
|---|---|---|---|---|
| 吊链 Carl 钢 8级 Ø6mm 1ST 1.5m | 25101000015218 | 1120.00 kg | 6 mm | 1.50 m |
| 吊链 Carl 钢 8级 Ø6mm 1ST 1m | 25101000015217 | 1120.00 kg | 6 mm | 1 m |
| 吊链 Carl 钢 8级 Ø6mm 1ST 5m | 25101000015223 | 1120.00 kg | 6 mm | 5 m |
| 吊链 Carl 钢 8级 Ø6mm 1ST 4m | 25101000015222 | 1120.00 kg | 6 mm | 4 m |
| 吊链 Carl 钢 8级 Ø6mm 1ST 3m | 25101000015221 | 1120.00 kg | 6 mm | 3 m |
| 吊链 Carl 钢 8级 Ø6mm 1ST 2.5m | 25101000015220 | 1120.00 kg | 6 mm | 2.50 m |
| 吊链 Carl 钢 8级 Ø6mm 1ST 2m | 25101000015219 | 1120.00 kg | 6 mm | 2 m |
| 吊链 Carl 钢 8级 Ø8mm 1ST 1m | 25101000015225 | 2000.00 kg | 8 mm | 1 m |
| 吊链 Carl 钢 8级 Ø8mm 1ST 1.5m | 25101000015226 | 2000.00 kg | 8 mm | 1.50 m |
| 吊链 Carl 钢 8级 Ø8mm 1ST 2m | 25101000015227 | 2000.00 kg | 8 mm | 2 m |
| 吊链 Carl 钢 8级 Ø8mm 1ST 2.5m | 25101000015228 | 2000.00 kg | 8 mm | 2.50 m |
| 吊链 Carl 钢 8级 Ø8mm 1ST 3m | 25101000015229 | 2000.00 kg | 8 mm | 3 m |
| 吊链 Carl 钢 8级 Ø8mm 1ST 4m | 25101000015230 | 2000.00 kg | 8 mm | 4 m |
| 吊链 Carl 钢 8级 Ø8mm 1ST 5m | 25101000015231 | 2000.00 kg | 8 mm | 5 m |
| 吊链 Carl 钢 8级 Ø10mm 1ST 5m | 25101000015239 | 3150.00 kg | 10.00 mm | 5 m |
| 吊链 Carl 钢 8级 Ø10mm 1ST 4m | 25101000015238 | 3150.00 kg | 10.00 mm | 4 m |
| 吊链 Carl 钢 8级 Ø10mm 1ST 3m | 25101000015237 | 3150.00 kg | 10.00 mm | 3 m |
| 吊链 Carl 钢 8级 Ø10mm 1ST | 25101000015236 | 3150.00 kg | 10.00 mm | 2.50 m |
| 吊链 Carl 钢 8级 Ø10mm 1ST | 25101000015234 | 3150.00 kg | 10.00 mm | 1.50 m |
| 吊链 Carl 钢 8级 Ø10mm 1ST 1m | 25101000015233 | 3150.00 kg | 10.00 mm | 1 m |
| 吊链 Carl 钢 8级 Ø10mm 1ST 2m | 25101000015235 | 3150.00 kg | 10.00 mm | 2 m |
| 吊链 Carl 钢 8级 Ø13mm 1ST 4m | 25101000015246 | 5300.00 kg | 13.00 mm | 4 m |
| 吊链 Carl 钢 8级 Ø13mm 1ST 5m | 25101000015247 | 5300.00 kg | 13.00 mm | 5 m |
| 吊链 Carl 钢 8级 Ø13mm 1ST 3m | 25101000015245 | 5300.00 kg | 13.00 mm | 3 m |
| 吊链 Carl 钢 8级 Ø13mm 1ST | 25101000015244 | 5300.00 kg | 13.00 mm | 2.50 m |
| 吊链 Carl 钢 8级 Ø13mm 1ST 2m | 25101000015243 | 5300.00 kg | 13.00 mm | 2 m |
| 吊链 Carl 钢 8级 Ø13mm 1ST | 25101000015242 | 5300.00 kg | 13.00 mm | 1.50 m |
| 吊链 Carl 钢 8级 Ø13mm 1ST 1m | 25101000015241 | 5300.00 kg | 13.00 mm | 1 m |
| 吊链 Carl 钢 8级 Ø16mm 1ST 1m | 25101000015249 | 8000.00 kg | 16.00 mm | 1 m |
| 吊链 Carl 钢 8级 Ø16mm 1ST | 25101000015250 | 8000.00 kg | 16.00 mm | 1.50 m |
| 吊链 Carl 钢 8级 Ø16mm 1ST 2m | 25101000015251 | 8000.00 kg | 16.00 mm | 2 m |
| 吊链 Carl 钢 8级 Ø16mm 1ST | 25101000015252 | 8000.00 kg | 16.00 mm | 2.50 m |
| 吊链 Carl 钢 8级 Ø16mm 1ST 3m | 25101000015253 | 8000.00 kg | 16.00 mm | 3 m |
| 吊链 Carl 钢 8级 Ø16mm 1ST 4m | 25101000015254 | 8000.00 kg | 16.00 mm | 4 m |
| 吊链 Carl 钢 8级 Ø16mm 1ST 5m | 25101000015255 | 8000.00 kg | 16.00 mm | 5 m |
产品特点
- 适用于吊装、搬运、连接、安装定位等工业现场。
- 可按载荷、尺寸、端部连接形式和使用环境进行选型。
- 保留原始型号和货号，便于与采购清单、样册和工程图纸核对。
