Product Detail
产品介绍

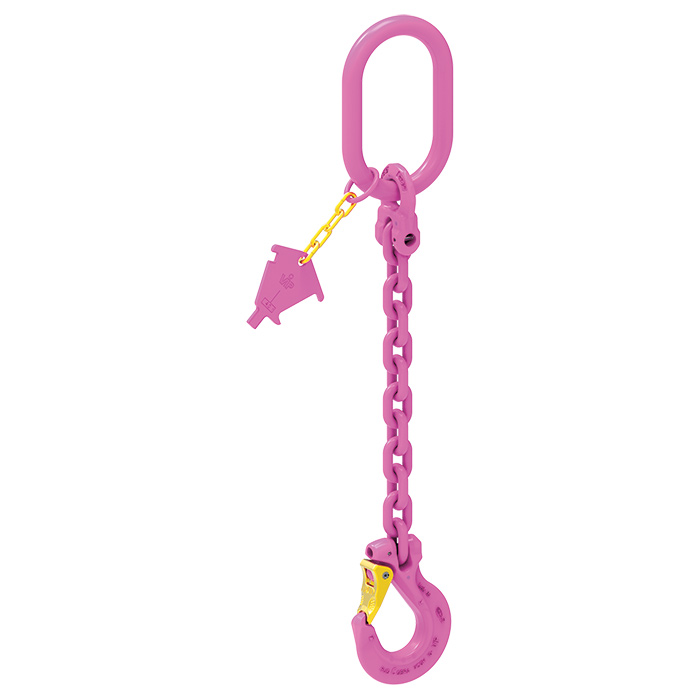

吊链 VIP 单腿属于VIP 10 系列链条索具，适用于工业吊装、设备搬运、安装定位和现场起重作业。产品可按载荷、尺寸、连接方式和使用环境进行选型。
该页面保留型号、货号和关键技术参数，方便采购、工程师和现场负责人快速核对。用于人员安全、重载或特殊环境时，应结合现场规范复核安全系数和适配部件。
本系列共整理 35 条规格记录，价格和购物车信息已删除，仅保留选型所需字段。
规格型号
| 型号 | 货号 | 允许载荷 | 链环直径 | 有效长度 |
|---|---|---|---|---|
| 吊链 VIP 10级 Ø6mm 1ST 2m | 25101000016193 | 1500.00 kg | 6 mm | 2 m |
| 吊链 VIP 10级 Ø6mm 1ST 1.5m | 25101000016192 | 1500.00 kg | 6 mm | 1.50 m |
| 吊链 VIP 10级 Ø6mm 1ST 1m | 25101000016198 | 1500.00 kg | 6 mm | 1 m |
| 吊链 VIP 10级 Ø6mm 1ST 5m | 25101000016197 | 1500.00 kg | 6 mm | 5 m |
| 吊链 VIP 10级 Ø6mm 1ST 4m | 25101000016196 | 1500.00 kg | 6 mm | 4 m |
| 吊链 VIP 10级 Ø6mm 1ST 3m | 25101000016195 | 1500.00 kg | 6 mm | 3 m |
| 吊链 VIP 10级 Ø6mm 1ST 2.5m | 25101000016194 | 1500.00 kg | 6 mm | 2.50 m |
| 吊链 VIP 10级 Ø8mm 1ST 1m | 25101000016213 | 2500.00 kg | 8 mm | 1 m |
| 吊链 VIP 10级 Ø8mm 1ST 1.5m | 25101000016214 | 2500.00 kg | 8 mm | 1.50 m |
| 吊链 VIP 10级 Ø8mm 1ST 2m | 25101000016215 | 2500.00 kg | 8 mm | 2 m |
| 吊链 VIP 10级 Ø8mm 1ST 2.5m | 25101000016216 | 2500.00 kg | 8 mm | 2.50 m |
| 吊链 VIP 10级 Ø8mm 1ST 3m | 25101000016217 | 2500.00 kg | 8 mm | 3 m |
| 吊链 VIP 10级 Ø8mm 1ST 4m | 25101000016218 | 2500.00 kg | 8 mm | 4 m |
| 吊链 VIP 10级 Ø8mm 1ST 5m | 25101000016219 | 2500.00 kg | 8 mm | 5 m |
| 吊链 VIP 10级 Ø10mm 1ST 5m | 25101000016242 | 4000.00 kg | 10.00 mm | 5 m |
| 吊链 VIP 10级 Ø10mm 1ST 4m | 25101000016241 | 4000.00 kg | 10.00 mm | 4 m |
| 吊链 VIP 10级 Ø10mm 1ST 3m | 25101000016240 | 4000.00 kg | 10.00 mm | 3 m |
| 吊链 VIP 10级 Ø10mm 1ST 2.5m | 25101000016239 | 4000.00 kg | 10.00 mm | 2.50 m |
| 吊链 VIP 10级 Ø10mm 1ST 1.5m | 25101000016237 | 4000.00 kg | 10.00 mm | 1.50 m |
| 吊链 VIP 10级 Ø10mm 1ST 1m | 25101000016236 | 4000.00 kg | 10.00 mm | 1 m |
| 吊链 VIP 10级 Ø10mm 1ST 2m | 25101000016238 | 4000.00 kg | 10.00 mm | 2 m |
| 吊链 VIP 10级 Ø13mm 1ST 4m | 25101000016264 | 6700.00 kg | 13.00 mm | 4 m |
| 吊链 VIP 10级 Ø13mm 1ST 5m | 25101000016265 | 6700.00 kg | 13.00 mm | 5 m |
| 吊链 VIP 10级 Ø13mm 1ST 3m | 25101000016263 | 6700.00 kg | 13.00 mm | 3 m |
| 吊链 VIP 10级 Ø13mm 1ST 2.5m | 25101000016262 | 6700.00 kg | 13.00 mm | 2.50 m |
| 吊链 VIP 10级 Ø13mm 1ST 2m | 25101000016261 | 6700.00 kg | 13.00 mm | 2 m |
| 吊链 VIP 10级 Ø13mm 1ST 1.5m | 25101000016260 | 6700.00 kg | 13.00 mm | 1.50 m |
| 吊链 VIP 10级 Ø13mm 1ST 1m | 25101000016259 | 6700.00 kg | 13.00 mm | 1 m |
| 吊链 VIP 10级 Ø16mm 1ST 1m | 25101000016280 | 10000.00 kg | 16.00 mm | 1 m |
| 吊链 VIP 10级 Ø16mm 1ST 1.5m | 25101000016281 | 10000.00 kg | 16.00 mm | 1.50 m |
| 吊链 VIP 10级 Ø16mm 1ST 2m | 25101000016282 | 10000.00 kg | 16.00 mm | 2 m |
| 吊链 VIP 10级 Ø16mm 1ST 2.5m | 25101000016283 | 10000.00 kg | 16.00 mm | 2.50 m |
| 吊链 VIP 10级 Ø16mm 1ST 3m | 25101000016284 | 10000.00 kg | 16.00 mm | 3 m |
| 吊链 VIP 10级 Ø16mm 1ST 4m | 25101000016285 | 10000.00 kg | 16.00 mm | 4 m |
| 吊链 VIP 10级 Ø16mm 1ST 5m | 25101000016286 | 10000.00 kg | 16.00 mm | 5 m |
产品特点
- 适用于吊装、搬运、连接、安装定位等工业现场。
- 可按载荷、尺寸、端部连接形式和使用环境进行选型。
- 保留原始型号和货号，便于与采购清单、样册和工程图纸核对。
