Product Detail
产品介绍

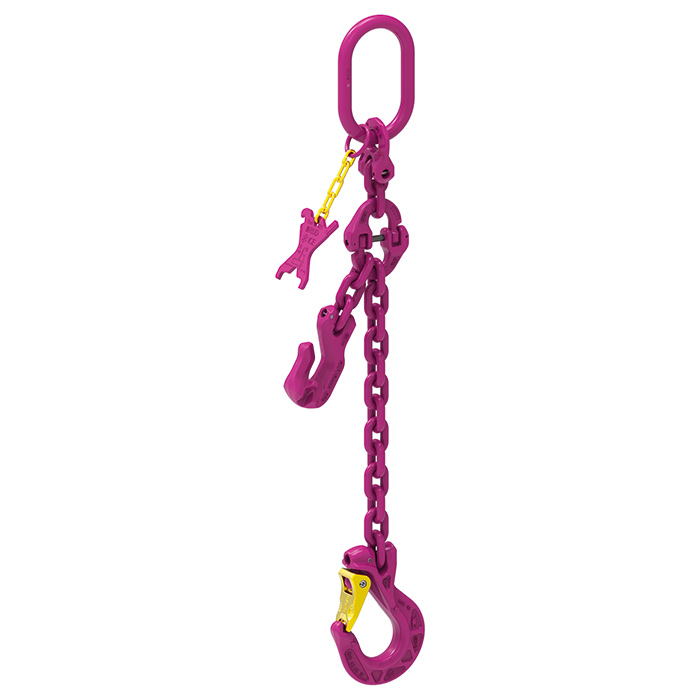

吊链 ICE 单腿 带缩短钩属于ICE 12 系列链条索具，适用于工业吊装、设备搬运、安装定位和现场起重作业。产品可按载荷、尺寸、连接方式和使用环境进行选型。
该页面保留型号、货号和关键技术参数，方便采购、工程师和现场负责人快速核对。用于人员安全、重载或特殊环境时，应结合现场规范复核安全系数和适配部件。
本系列共整理 25 条规格记录，价格和购物车信息已删除，仅保留选型所需字段。
规格型号
| 型号 | 货号 | 允许载荷 | 链环直径 | 有效长度 |
|---|---|---|---|---|
| 吊链 ICE 12级 Ø6mm 1ST 2m | 25101000015800 | 1800.00 kg | 6 mm | 2 m |
| 吊链 ICE 12级 Ø6mm 1ST 3m | 25101000015801 | 1800.00 kg | 6 mm | 3 m |
| 吊链 ICE 12级 Ø6mm 1ST 4m | 25101000015802 | 1800.00 kg | 6 mm | 4 m |
| 吊链 ICE 12级 Ø6mm 1ST 5m | 25101000015803 | 1800.00 kg | 6 mm | 5 m |
| 吊链 ICE 12级 Ø6mm 1ST 1m | 25101000015799 | 1800.00 kg | 6 mm | 1 m |
| 吊链 ICE 12级 Ø8mm 1ST 1m | 25101000015835 | 3000.00 kg | 8 mm | 1 m |
| 吊链 ICE 12级 Ø8mm 1ST 2m | 25101000015836 | 3000.00 kg | 8 mm | 2 m |
| 吊链 ICE 12级 Ø8mm 1ST 3m | 25101000015837 | 3000.00 kg | 8 mm | 3 m |
| 吊链 ICE 12级 Ø8mm 1ST 4m | 25101000015838 | 3000.00 kg | 8 mm | 4 m |
| 吊链 ICE 12级 Ø8mm 1ST 5m | 25101000015839 | 3000.00 kg | 8 mm | 5 m |
| 吊链 ICE 12级 Ø10mm 1ST 3m | 25101000015873 | 5000.00 kg | 10.00 mm | 3 m |
| 吊链 ICE 12级 Ø10mm 1ST 5m | 25101000015875 | 5000.00 kg | 10.00 mm | 5 m |
| 吊链 ICE 12级 Ø10mm 1ST 4m | 25101000015874 | 5000.00 kg | 10.00 mm | 4 m |
| 吊链 ICE 12级 Ø10mm 1ST 2m | 25101000015872 | 5000.00 kg | 10.00 mm | 2 m |
| 吊链 ICE 12级 Ø10mm 1ST 1m | 25101000015871 | 5000.00 kg | 10.00 mm | 1 m |
| 吊链 ICE 12级 Ø13mm 1ST 1m | 25101000015907 | 8000.00 kg | 13.00 mm | 1 m |
| 吊链 ICE 12级 Ø13mm 1ST 2m | 25101000015908 | 8000.00 kg | 13.00 mm | 2 m |
| 吊链 ICE 12级 Ø13mm 1ST 3m | 25101000015909 | 8000.00 kg | 13.00 mm | 3 m |
| 吊链 ICE 12级 Ø13mm 1ST 4m | 25101000015910 | 8000.00 kg | 13.00 mm | 4 m |
| 吊链 ICE 12级 Ø13mm 1ST 5m | 25101000015911 | 8000.00 kg | 13.00 mm | 5 m |
| 吊链 ICE 12级 Ø16mm 1ST 1m | 25101000015943 | 12500.00 kg | 16.00 mm | 1 m |
| 吊链 ICE 12级 Ø16mm 1ST 2m | 25101000015944 | 12500.00 kg | 16.00 mm | 2 m |
| 吊链 ICE 12级 Ø16mm 1ST 3m | 25101000015945 | 12500.00 kg | 16.00 mm | 3 m |
| 吊链 ICE 12级 Ø16mm 1ST 4m | 25101000015946 | 12500.00 kg | 16.00 mm | 4 m |
| 吊链 ICE 12级 Ø16mm 1ST 5m | 25101000015947 | 12500.00 kg | 16.00 mm | 5 m |
产品特点
- 适用于吊装、搬运、连接、安装定位等工业现场。
- 可按载荷、尺寸、端部连接形式和使用环境进行选型。
- 保留原始型号和货号，便于与采购清单、样册和工程图纸核对。
