Product Detail
产品介绍

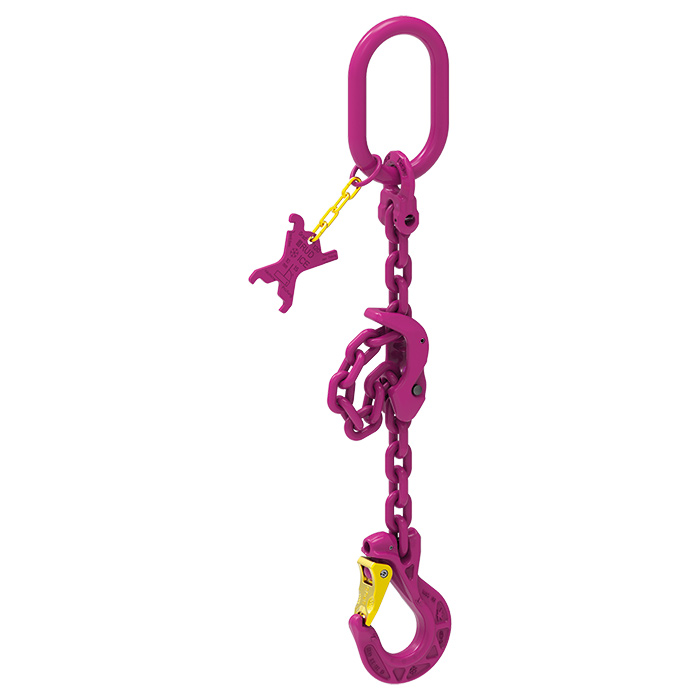

吊链 ICE 单腿 带缩短爪属于ICE 12 系列链条索具，适用于工业吊装、设备搬运、安装定位和现场起重作业。产品可按载荷、尺寸、连接方式和使用环境进行选型。
该页面保留型号、货号和关键技术参数，方便采购、工程师和现场负责人快速核对。用于人员安全、重载或特殊环境时，应结合现场规范复核安全系数和适配部件。
本系列共整理 25 条规格记录，价格和购物车信息已删除，仅保留选型所需字段。
规格型号
| 型号 | 货号 | 允许载荷 | 链环直径 | 有效长度 |
|---|---|---|---|---|
| 吊链 ICE 12级 Ø6mm 1ST 2m | 25101000015794 | 1800.00 kg | 6 mm | 2 m |
| 吊链 ICE 12级 Ø6mm 1ST 3m | 25101000015795 | 1800.00 kg | 6 mm | 3 m |
| 吊链 ICE 12级 Ø6mm 1ST 4m | 25101000015796 | 1800.00 kg | 6 mm | 4 m |
| 吊链 ICE 12级 Ø6mm 1ST 5m | 25101000015797 | 1800.00 kg | 6 mm | 5 m |
| 吊链 ICE 12级 Ø6mm 1ST 1m | 25101000015793 | 1800.00 kg | 6 mm | 1 m |
| 吊链 ICE 12级 Ø8mm 1ST 1m | 25101000015829 | 3000.00 kg | 8 mm | 1 m |
| 吊链 ICE 12级 Ø8mm 1ST 2m | 25101000015830 | 3000.00 kg | 8 mm | 2 m |
| 吊链 ICE 12级 Ø8mm 1ST 3m | 25101000015831 | 3000.00 kg | 8 mm | 3 m |
| 吊链 ICE 12级 Ø8mm 1ST 4m | 25101000015832 | 3000.00 kg | 8 mm | 4 m |
| 吊链 ICE 12级 Ø8mm 1ST 5m | 25101000015833 | 3000.00 kg | 8 mm | 5 m |
| 吊链 ICE 12级 Ø10mm 1ST 3m | 25101000015867 | 5000.00 kg | 10.00 mm | 3 m |
| 吊链 ICE 12级 Ø10mm 1ST 5m | 25101000015869 | 5000.00 kg | 10.00 mm | 5 m |
| 吊链 ICE 12级 Ø10mm 1ST 4m | 25101000015868 | 5000.00 kg | 10.00 mm | 4 m |
| 吊链 ICE 12级 Ø10mm 1ST 2m | 25101000015866 | 5000.00 kg | 10.00 mm | 2 m |
| 吊链 ICE 12级 Ø10mm 1ST 1m | 25101000015865 | 5000.00 kg | 10.00 mm | 1 m |
| 吊链 ICE 12级 Ø13mm 1ST 1m | 25101000015901 | 8000.00 kg | 13.00 mm | 1 m |
| 吊链 ICE 12级 Ø13mm 1ST 2m | 25101000015902 | 8000.00 kg | 13.00 mm | 2 m |
| 吊链 ICE 12级 Ø13mm 1ST 3m | 25101000015903 | 8000.00 kg | 13.00 mm | 3 m |
| 吊链 ICE 12级 Ø13mm 1ST 4m | 25101000015904 | 8000.00 kg | 13.00 mm | 4 m |
| 吊链 ICE 12级 Ø13mm 1ST 5m | 25101000015905 | 8000.00 kg | 13.00 mm | 5 m |
| 吊链 ICE 12级 Ø16mm 1ST 1m | 25101000015937 | 12500.00 kg | 16.00 mm | 1 m |
| 吊链 ICE 12级 Ø16mm 1ST 2m | 25101000015938 | 12500.00 kg | 16.00 mm | 2 m |
| 吊链 ICE 12级 Ø16mm 1ST 3m | 25101000015939 | 12500.00 kg | 16.00 mm | 3 m |
| 吊链 ICE 12级 Ø16mm 1ST 4m | 25101000015940 | 12500.00 kg | 16.00 mm | 4 m |
| 吊链 ICE 12级 Ø16mm 1ST 5m | 25101000015941 | 12500.00 kg | 16.00 mm | 5 m |
产品特点
- 适用于吊装、搬运、连接、安装定位等工业现场。
- 可按载荷、尺寸、端部连接形式和使用环境进行选型。
- 保留原始型号和货号，便于与采购清单、样册和工程图纸核对。
