Product Detail
产品介绍

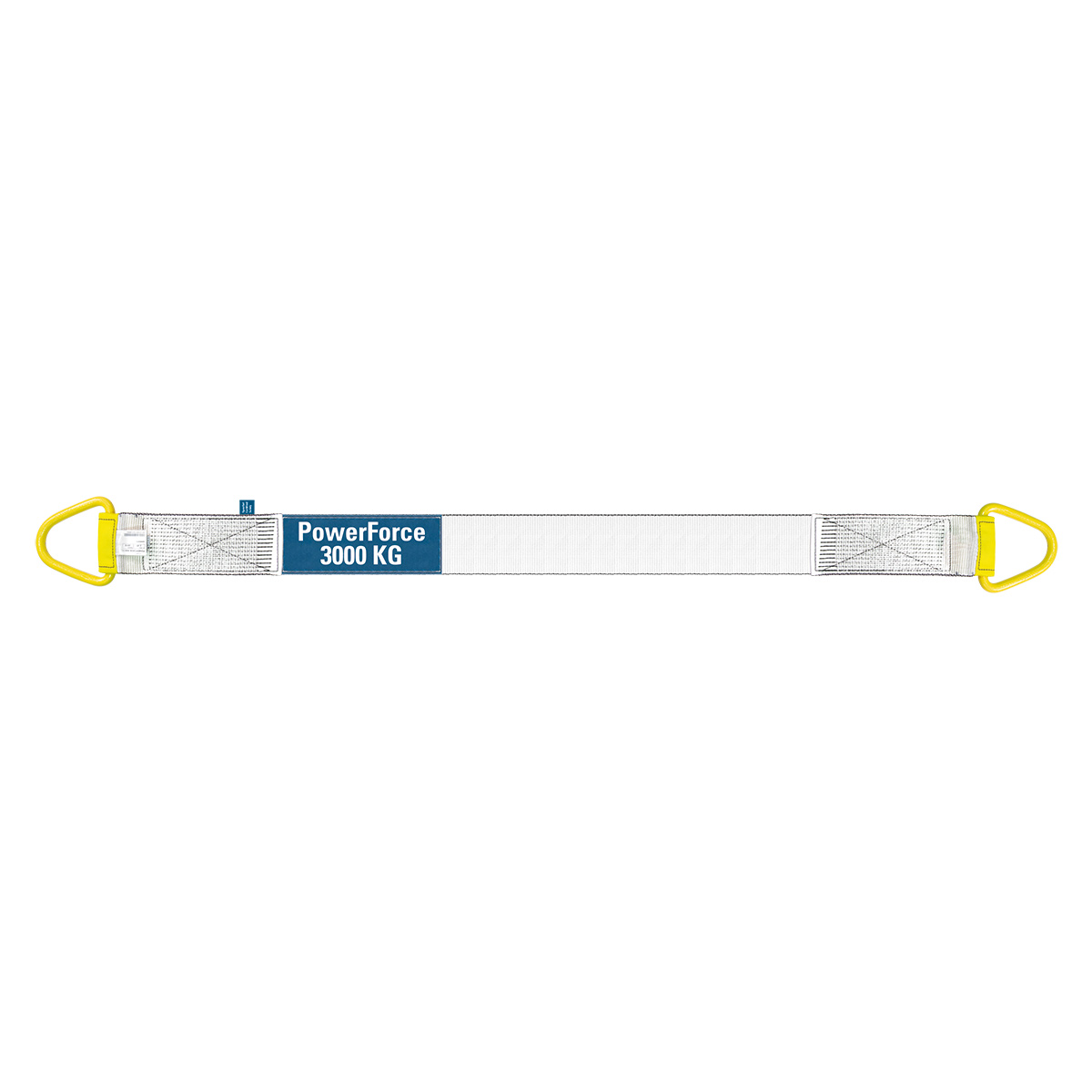

PowerForce 扁平吊装带 双D1吊环
PowerForce 扁平吊装带 双D1吊环适用于工业吊装、设备搬运和现场装配作业。该系列可根据额定载荷、有效长度、端部连接形式和作业环境进行选型，适合需要柔性连接与载荷表面保护的场景。
规格型号
| 型号 | SAP编号 | 额定载荷 | 有效长度 | 带宽 | 上端连接件 | 下端连接件 | 材质 | 颜色标识 | 标准 | 净重 | 最高使用温度 | 最低使用温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 扁平吊装带 PowerForce 1.000kg 2m | 25103000039005 | 1000.00 kg | 2.000 m | 40.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 紫色 | similar to DIN EN1492-1 | 0.73000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 1.000kg 3m | 25103000039006 | 1000.00 kg | 3.000 m | 40.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 紫色 | similar to DIN EN1492-1 | 0.81000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 1.000kg 4m | 25103000039007 | 1000.00 kg | 4.000 m | 40.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 紫色 | similar to DIN EN1492-1 | 0.89000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 1.000kg 5m | 25103000039008 | 1000.00 kg | 5.000 m | 40.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 紫色 | similar to DIN EN1492-1 | 0.97000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 1.000kg 6m | 25103000039009 | 1000.00 kg | 6.000 m | 40.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 紫色 | similar to DIN EN1492-1 | 1.05000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 1.000kg 8m | 25103000039010 | 1000.00 kg | 8.000 m | 40.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 紫色 | similar to DIN EN1492-1 | 1.21000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 2.000kg 2m | 25103000039011 | 2000.00 kg | 2.000 m | 80.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 绿色 | similar to DIN EN1492-1 | 1.25000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 2.000kg 3m | 25103000039012 | 2000.00 kg | 3.000 m | 80.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 绿色 | similar to DIN EN1492-1 | 1.41000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 2.000kg 4m | 25103000039013 | 2000.00 kg | 4.000 m | 80.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 绿色 | similar to DIN EN1492-1 | 1.57000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 2.000kg 5m | 25103000039014 | 2000.00 kg | 5.000 m | 80.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 绿色 | similar to DIN EN1492-1 | 1.73000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 2.000kg 6m | 25103000039015 | 2000.00 kg | 6.000 m | 80.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 绿色 | similar to DIN EN1492-1 | 1.89000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 2.000kg 8m | 25103000039016 | 2000.00 kg | 8.000 m | 80.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 绿色 | similar to DIN EN1492-1 | 2.21000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 3.000kg 2m | 25103000039017 | 3000.00 kg | 2.000 m | 120.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 黄色 | similar to DIN EN1492-1 | 2.06000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 3.000kg 3m | 25103000039018 | 3000.00 kg | 3.000 m | 120.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 黄色 | similar to DIN EN1492-1 | 2.30000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 3.000kg 4m | 25103000039019 | 3000.00 kg | 4.000 m | 120.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 黄色 | similar to DIN EN1492-1 | 2.54000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 3.000kg 5m | 25103000039020 | 3000.00 kg | 5.000 m | 120.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 黄色 | similar to DIN EN1492-1 | 2.78000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 3.000kg 6m | 25103000039021 | 3000.00 kg | 6.000 m | 120.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 黄色 | similar to DIN EN1492-1 | 3.02000 kg | 60 °C | 40- °C |
| 扁平吊装带 PowerForce 3.000kg 8m | 25103000039022 | 3000.00 kg | 8.000 m | 120.00 mm | D1-clamp | D1-clamp | High molecular w. polyethylene | 黄色 | similar to DIN EN1492-1 | 3.50000 kg | 60 °C | 40- °C |
产品特点
- 规格参数按具体底层产品链接整理，便于采购、工程设计和现场选型快速对照。
- 适用于工业吊装、设备搬运、装配维护和现场起重作业，可根据载荷、长度、端部连接和使用环境选型。
- 扁平吊装带接触面积较大，适合需要保护工件表面、减少局部压痕的吊装场景。
该系列共整理 18 个规格型号，可作为项目沟通和方案配置时的参考资料。
