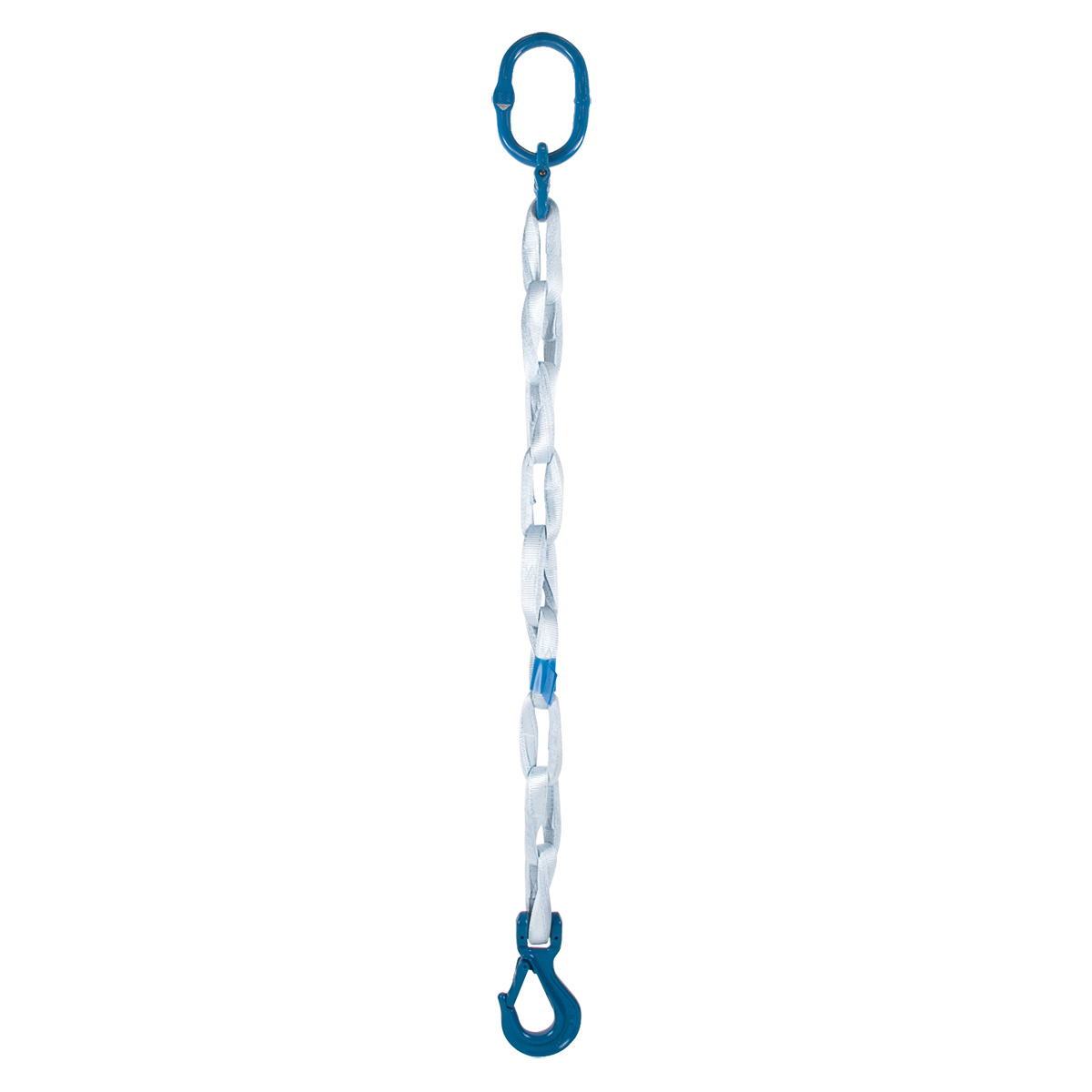

纺织吊装链 1肢

Product Detail

产品介绍

纺织吊装链 1肢适用于单吊点或需要轻量化柔性连接的起吊场景。Tycan 纺织链条自重轻、耐磨性好，对精加工表面和喷涂表面更友好，适合设备装配、工位搬运和现场安装。

规格型号

型号	SAP编号	额定载荷	有效长度	肢数	材质	净重	最高使用温度	最低使用温度	防爆
纺织吊装链 GP Tycan® 1115 1ST 2m	25101200035054	2600.00 kg	2.000 m	1	UHMWPE	2.45000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1115 1ST 3m	25101200035055	2600.00 kg	3.000 m	1	UHMWPE	2.77000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1115 1ST 4m	25101200035056	2600.00 kg	4.000 m	1	UHMWPE	3.09000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1115 1ST 5m	25101200035057	2600.00 kg	5.000 m	1	UHMWPE	3.41000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1115 1ST 6m	25101200035058	2600.00 kg	6.000 m	1	UHMWPE	3.73000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1115 1ST 8m	25101200035059	2600.00 kg	8.000 m	1	UHMWPE	4.37000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1115 1ST 10m	25101200035060	2600.00 kg	10.000 m	1	UHMWPE	5.01000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1115 1ST 2m	25101200035061	2600.00 kg	2.000 m	1	UHMWPE	3.40000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1115 1ST 3m	25101200035062	2600.00 kg	3.000 m	1	UHMWPE	3.72000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1115 1ST 4m	25101200035063	2600.00 kg	4.000 m	1	UHMWPE	4.04000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1115 1ST 5m	25101200035064	2600.00 kg	5.000 m	1	UHMWPE	4.36000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1115 1ST 6m	25101200035065	2600.00 kg	6.000 m	1	UHMWPE	4.68000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1115 1ST 8m	25101200035066	2600.00 kg	8.000 m	1	UHMWPE	5.32000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1115 1ST 10m	25101200035067	2600.00 kg	10.000 m	1	UHMWPE	5.96000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1120 1ST 2m	25101200035097	4000.00 kg	2.000 m	1	UHMWPE	4.12000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1120 1ST 3m	25101200035098	4000.00 kg	3.000 m	1	UHMWPE	4.59000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1120 1ST 4m	25101200035099	4000.00 kg	4.000 m	1	UHMWPE	5.06000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1120 1ST 5m	25101200035100	4000.00 kg	5.000 m	1	UHMWPE	5.53000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1120 1ST 6m	25101200035101	4000.00 kg	6.000 m	1	UHMWPE	6.00000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1120 1ST 8m	25101200035102	4000.00 kg	8.000 m	1	UHMWPE	6.94000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1120 1ST 10m	25101200035103	4000.00 kg	10.000 m	1	UHMWPE	7.88000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1120 1ST 2m	25101200035104	4000.00 kg	2.000 m	1	UHMWPE	5.79000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1120 1ST 3m	25101200035105	4000.00 kg	3.000 m	1	UHMWPE	6.26000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1120 1ST 4m	25101200035106	4000.00 kg	4.000 m	1	UHMWPE	6.73000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1120 1ST 5m	25101200035107	4000.00 kg	5.000 m	1	UHMWPE	7.20000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1120 1ST 6m	25101200035108	4000.00 kg	6.000 m	1	UHMWPE	7.67000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1120 1ST 8m	25101200035109	4000.00 kg	8.000 m	1	UHMWPE	8.61000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1120 1ST 10m	25101200035110	4000.00 kg	10.000 m	1	UHMWPE	9.55000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1525 1ST 2m	25101200035204	5000.00 kg	2.000 m	1	UHMWPE	6.27000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1525 1ST 3m	25101200035205	5000.00 kg	3.000 m	1	UHMWPE	6.85000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1525 1ST 4m	25101200035206	5000.00 kg	4.000 m	1	UHMWPE	7.43000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1525 1ST 5m	25101200035207	5000.00 kg	5.000 m	1	UHMWPE	8.01000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1525 1ST 6m	25101200035208	5000.00 kg	6.000 m	1	UHMWPE	8.59000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1525 1ST 8m	25101200035209	5000.00 kg	8.000 m	1	UHMWPE	9.75000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1525 1ST 10m	25101200035210	5000.00 kg	10.000 m	1	UHMWPE	10.91000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1525 1ST 2m	25101200035211	5000.00 kg	2.000 m	1	UHMWPE	8.27000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1525 1ST 3m	25101200035212	5000.00 kg	3.000 m	1	UHMWPE	8.85000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1525 1ST 4m	25101200035213	5000.00 kg	4.000 m	1	UHMWPE	9.43000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1525 1ST 5m	25101200035214	5000.00 kg	5.000 m	1	UHMWPE	10.01000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1525 1ST 6m	25101200035215	5000.00 kg	6.000 m	1	UHMWPE	10.59000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1525 1ST 8m	25101200035216	5000.00 kg	8.000 m	1	UHMWPE	11.75000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1525 1ST 10m	25101200035217	5000.00 kg	10.000 m	1	UHMWPE	12.91000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1330 1ST 2m	25101200035142	6800.00 kg	2.000 m	1	UHMWPE	6.87000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1330 1ST 3m	25101200035143	6800.00 kg	3.000 m	1	UHMWPE	7.62000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1330 1ST 4m	25101200035144	6800.00 kg	4.000 m	1	UHMWPE	8.37000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1330 1ST 5m	25101200035145	6800.00 kg	5.000 m	1	UHMWPE	9.12000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1330 1ST 6m	25101200035146	6800.00 kg	6.000 m	1	UHMWPE	9.87000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1330 1ST 8m	25101200035147	6800.00 kg	8.000 m	1	UHMWPE	11.37000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1330 1ST 10m	25101200035148	6800.00 kg	10.000 m	1	UHMWPE	12.87000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1330 1ST 2m	25101200035149	6800.00 kg	2.000 m	1	UHMWPE	10.08000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1330 1ST 3m	25101200035150	6800.00 kg	3.000 m	1	UHMWPE	10.83000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1330 1ST 4m	25101200035151	6800.00 kg	4.000 m	1	UHMWPE	11.58000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1330 1ST 5m	25101200035152	6800.00 kg	5.000 m	1	UHMWPE	12.33000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1330 1ST 6m	25101200035153	6800.00 kg	6.000 m	1	UHMWPE	13.08000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1330 1ST 8m	25101200035154	6800.00 kg	8.000 m	1	UHMWPE	14.58000 kg	70 °C	40- °C	否
纺织吊装链 GP Tycan® 1330 1ST 10m	25101200035155	6800.00 kg	10.000 m	1	UHMWPE	16.08000 kg	70 °C	40- °C	否

产品特点

规格参数按具体产品系列整理，便于采购、工程设计和现场选型快速对照。
适用于工业吊装、搬运、装配和现场起重作业，可根据载荷、长度、肢数和使用环境选型。

该系列共整理 56 个规格型号，可作为采购、工程设计和现场选型时的快速对照资料。
