Product Detail
产品介绍

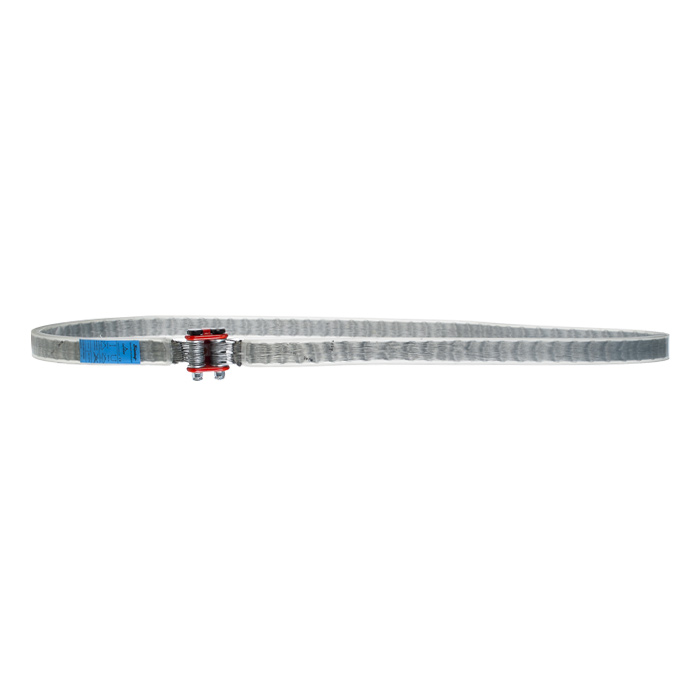

带绳吊装带 锁扣式环形属于带绳吊装带系列，适用于钢丝绳、吊索、吊具组合、设备搬运和特殊工件连接等场景。
该系列结合织带和钢丝绳连接形式，适合需要柔性接触、较大承载能力或特殊端部连接的吊装工况。页面保留官网原始型号和关键技术字段，方便采购、工程师和现场负责人快速核对。
规格型号
| 型号 | SAP编号 |
|---|---|
| Bandseilhebeband 1.500kg 40x16mm 1m PU涂层 | 25104000015178 |
| Bandseilhebeband 1.500kg 40x16mm 1m | 25104000035700 |
| Bandseilhebeband 1.500kg 40x16mm 2m | 25104000036847 |
| Bandseilhebeband 1.500kg 40x16mm 4m | 25104000036849 |
| Bandseilhebeband 1.500kg 40x16mm 3m PU涂层 | 25104000036825 |
| Bandseilhebeband 1.500kg 40x16mm 2m PU涂层 | 25104000035582 |
| Bandseilhebeband 1.500kg 40x16mm 4m PU涂层 | 25104000036826 |
| Bandseilhebeband 1.500kg 40x16mm 3m | 25104000036848 |
| Bandseilhebeband 2.500kg 50x16mm 2m | 25104000036850 |
| Bandseilhebeband 2.500kg 50x16mm 3m PU涂层 | 25104000036829 |
| Bandseilhebeband 2.500kg 50x16mm 4m | 25104000036852 |
| Bandseilhebeband 2.500kg 50x16mm 3m | 25104000036851 |
| Bandseilhebeband 2.500kg 50x16mm 4m PU涂层 | 25104000036830 |
| Bandseilhebeband 2.500kg 50x16mm 1m | 25104000035701 |
| Bandseilhebeband 2.500kg 50x16mm 1m PU涂层 | 25104000015179 |
| Bandseilhebeband 4.000kg 80x18mm 4m PU涂层 | 25104000036837 |
| Bandseilhebeband 4.000kg 80x18mm 2m PU涂层 | 25104000036835 |
| Bandseilhebeband 4.000kg 80x18mm 3m PU涂层 | 25104000036836 |
| Bandseilhebeband 4.000kg 80x18mm 3m | 25104000036854 |
| Bandseilhebeband 4.000kg 80x18mm 1m | 25104000035702 |
| Bandseilhebeband 4.000kg 80x18mm 4m | 25104000036855 |
| Bandseilhebeband 4.000kg 80x18mm 2m | 25104000036853 |
| Bandseilhebeband 4.000kg 80x18mm 1m PU涂层 | 25104000015180 |
| Bandseilhebeband 6.000kg 80x18mm 2m PU涂层 | 25104000036842 |
| Bandseilhebeband 6.000kg 80x18mm 4m PU涂层 | 25104000036276 |
| Bandseilhebeband 6.000kg 80x18mm 3m | 25104000036446 |
| Bandseilhebeband 6.000kg 80x18mm 3m PU涂层 | 25104000036841 |
| Bandseilhebeband 6.000kg 80x18mm 2m | 25104000036856 |
| Bandseilhebeband 6.000kg 80x18mm 1m PU涂层 | 25104000015181 |
| Bandseilhebeband 6.000kg 80x18mm 4m | 25104000036857 |
| Bandseilhebeband 6.000kg 80x18mm 1m | 25104000035703 |
| Bandseilhebeband 12.000kg 120x22mm 4m | 25104000036860 |
| Bandseilhebeband 12.000kg 120x22mm 4m PU涂层 | 25104000036846 |
| Bandseilhebeband 12.000kg 120x22mm 3m | 25104000036859 |
| Bandseilhebeband 12.000kg 120x22mm 2m | 25104000036858 |
| Bandseilhebeband 12.000kg 120x22mm 3m PU涂层 | 25104000036845 |
| Bandseilhebeband 12.000kg 120x22mm 2m PU涂层 | 25104000036844 |
| Bandseilhebeband 12.000kg 120x22mm 1m PU涂层 | 25104000015182 |
| Bandseilhebeband 12.000kg 120x22mm 1m | 25104000035704 |
| Bandseilhebeband 24.000kg 150x25mm 1m PU涂层 | 25104000015183 |
| Bandseilhebeband 24.000kg 150x22mm 1m | 25104000035705 |
| Bandseilhebeband 34.000kg 200x30mm 1m | 25104000035706 |
| Bandseilhebeband 34.000kg 200x30mm 1m PU涂层 | 25104000015184 |
产品特点
- 可根据额定载荷、有效长度、端部连接形式、表面处理和现场空间进行选型。
- 适用于工业吊装、设备搬运、装配维护和非标吊具配置。
- 选型时建议确认载荷方向、吊点数量、边角保护、接触面状态和现场安全系数。
- 该系列共整理 43 个规格记录，便于报价、样册和工程方案对照。
