Product Detail
产品介绍

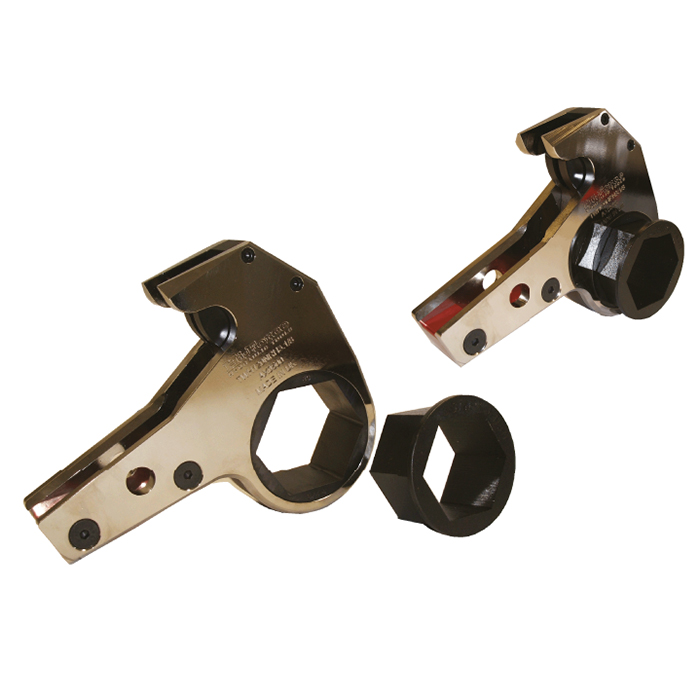

英制 六角变径衬套 IB
英制 六角变径衬套 IB属于液压工具系列，适用于工业顶升、维护检修、螺栓紧固、拆卸分离或系统连接等场景。页面保留型号、尺寸、压力、行程、能力、接口等关键参数，便于采购、工程和现场人员快速核对。
规格型号
| 结构形式 | 输出六角 英制 | 输入六角 英制 | 型号 | 净重 |
|---|---|---|---|---|
| Zoll | 3 1/8" | 3 1/2" | IB120 | 4.80 kg |
| Zoll | 2 3/16" | 2 3/8" | IB120 | 2.40 kg |
| Zoll | 2 3/16" | 2 9/16" | IB120 | 4.80 kg |
| Zoll | 2 3/8" | 2 9/16" | IB120 | 2.40 kg |
| Zoll | 2 3/16" | 2 3/4" | IB120 | 7.20 kg |
| Zoll | 2 3/8" | 2 3/4" | IB120 | 4.80 kg |
| Zoll | 2 9/16" | 2 3/4" | IB120 | 2.40 kg |
| Zoll | 2 3/8" | 2 15/16" | IB120 | 7.20 kg |
| Zoll | 2 9/16" | 2 15/16" | IB120 | 4.80 kg |
| Zoll | 2 3/4" | 2 15/16" | IB120 | 2.40 kg |
| Zoll | 2 9/16" | 3 1/8" | IB120 | 7.20 kg |
| Zoll | 2 3/4" | 3 1/8" | IB120 | 4.80 kg |
| Zoll | 2 15/16" | 3 1/8" | IB120 | 2.40 kg |
| Zoll | 2 15/16" | 3 1/2" | IB120 | 7.20 kg |
| Zoll | 3 1/8" | 3 7/8" | IB120 | 9.50 kg |
| Zoll | 3 1/2" | 3 7/8" | IB120 | 4.80 kg |
| Zoll | 2 3/4" | 2 15/16" | IB210 | 2.40 kg |
| Zoll | 2 3/4" | 3 1/8" | IB210 | 4.80 kg |
| Zoll | 2 15/16" | 3 1/8" | IB210 | 2.40 kg |
| Zoll | 2 15/16" | 3 1/2" | IB210 | 7.20 kg |
| Zoll | 3 1/8" | 3 1/2" | IB210 | 4.80 kg |
| Zoll | 3 1/8" | 3 7/8" | IB210 | 9.50 kg |
| Zoll | 3 1/2" | 3 7/8" | IB210 | 4.80 kg |
| Zoll | 3 1/2" | 4 1/4" | IB210 | 9.50 kg |
| Zoll | 3 7/8" | 4 1/4" | IB210 | 4.80 kg |
| Zoll | 3 7/8" | 4 5/8" | IB210 | 9.50 kg |
| Zoll | 4 1/4" | 4 5/8" | IB210 | 4.80 kg |
| Zoll | 1 1/16" | 1 7/16" | IB27 | 4.80 kg |
| Zoll | 1 5/8" | 1 13/16" | IB27 | 2.40 kg |
| Zoll | 1 1/16" | 1 1/4" | IB27 | 2.40 kg |
| Zoll | 1 1/4" | 1 7/16" | IB27 | 2.40 kg |
| Zoll | 1 1/4" | 1 5/8" | IB27 | 4.80 kg |
| Zoll | 1 7/16" | 1 5/8" | IB27 | 2.40 kg |
| Zoll | 1 7/16" | 1 13/16" | IB27 | 4.80 kg |
| Zoll | 2 3/16" | 2 3/8" | IB27 | 2.40 kg |
| Zoll | 2" | 2 3/8" | IB27 | 4.80 kg |
| Zoll | 1 13/16" | 2 3/8" | IB27 | 7.20 kg |
| Zoll | 2" | 2 3/16" | IB27 | 2.40 kg |
| Zoll | 1 13/16" | 2 3/16" | IB27 | 4.80 kg |
| Zoll | 1 5/8" | 2 3/16" | IB27 | 7.20 kg |
| Zoll | 1 13/16" | 2" | IB27 | 2.40 kg |
| Zoll | 1 5/8" | 2" | IB27 | 4.80 kg |
| Zoll | 3 1/2" | 3 7/8" | IB430 | 4.80 kg |
| Zoll | 3 1/8" | 3 1/2" | IB430 | 4.80 kg |
| Zoll | 3 1/8" | 3 7/8" | IB430 | 9.50 kg |
| Zoll | 6 1/2" | 6 7/8" | IB430 | 4.80 kg |
| Zoll | 3 1/2" | 4 1/4" | IB430 | 9.50 kg |
| Zoll | 3 7/8" | 4 1/4" | IB430 | 4.80 kg |
产品特点
- 适用于设备安装、检修维护、重载顶升、液压连接、螺栓紧固和拆卸分离等工业应用。
- 可根据载荷、行程、压力、接口、尺寸和现场空间选择对应型号。
- 参数用于初步选型，正式采购前建议结合现场工况和安全要求确认。
